Spanning Tree - portfast, bpduguard, bpdufilter

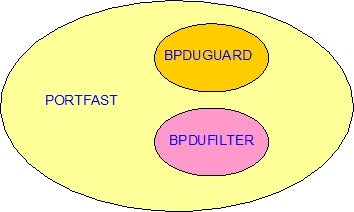

I use the above diagram to illustrate the interaction between the spanning tree features: portfast, bpdufilter and bpduguard.

For a long time whilst i understood the purpose of these features i did not understand how in particular bpdufilter and bpduguard interacted with each other.
I have at last resolved this confusion by running a wire capture to see for myself exactly what is going on.

First the basics
portfast - moves a port immediately to the forwarding state
bpdufilter - stops a port sending bpdus
bpduguard - error disables a port if bpdus are received

config-if#spanning-tree portfast

Enabling portfast the port moves to forwarding state and from the capture i can see BPDUs still being sent.

config-if#spanning-tree portfast
config-if#spanning-tree bpdufilter

I enable bpdufilter and BPDUS are no longer sent.

config-if#spanning-tree portfast
config-if#spanning-tree bpduguard

I enable bpduguard and can see bpdus being sent. I was somewhat surprised by this as i had always treated bpduguard as a more severe version of bpdufilter. i.e. no bpdus sent with the guard feature set - Wrong!!

The enlightening moment for me was the realisation that to enforce no bpdus are sent and bpduguard is on perhaps requires bpdufilter to be enabled alongside bpduguard.

config-if#spanning-tree portfast
config-if#spanning-tree bpduguard
config-if#spanning-tree bpdufilter

With the above commands i observed no bpdus being sent. I had previously assumed these features were mutually exclusive. They are not, they perform different functions and can be used alongside each other.

To observe bpdu guard in action i connected the port to another switchport that was sending bpdus.

I then observed the following...

01:03:26: %SPANTREE-2-BLOCK_BPDUGUARD: Received BPDU on port FastEthernet0/24 with BPDU Guard enabled. Disabling port.
01:03:26: %PM-4-ERR_DISABLE: bpduguard error detected on Fa0/24, putting Fa0/24in err-disable state
01:03:27: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/24, changed state to down
01:03:28: %LINK-3-UPDOWN: Interface FastEthernet0/24, changed state to down

Examining the port status

show int status err-disabled
Port Name Status Reason
Fa0/24 err-disabled bpduguard

To ensure auto recovery i entered the following commands

config#errdisable recovery cause bpduguard
config#errdisable recovery interval 30

I then applied bpdufilter to the neighboring switch port sending bpdus and the local port was automatically restored to normal service.
